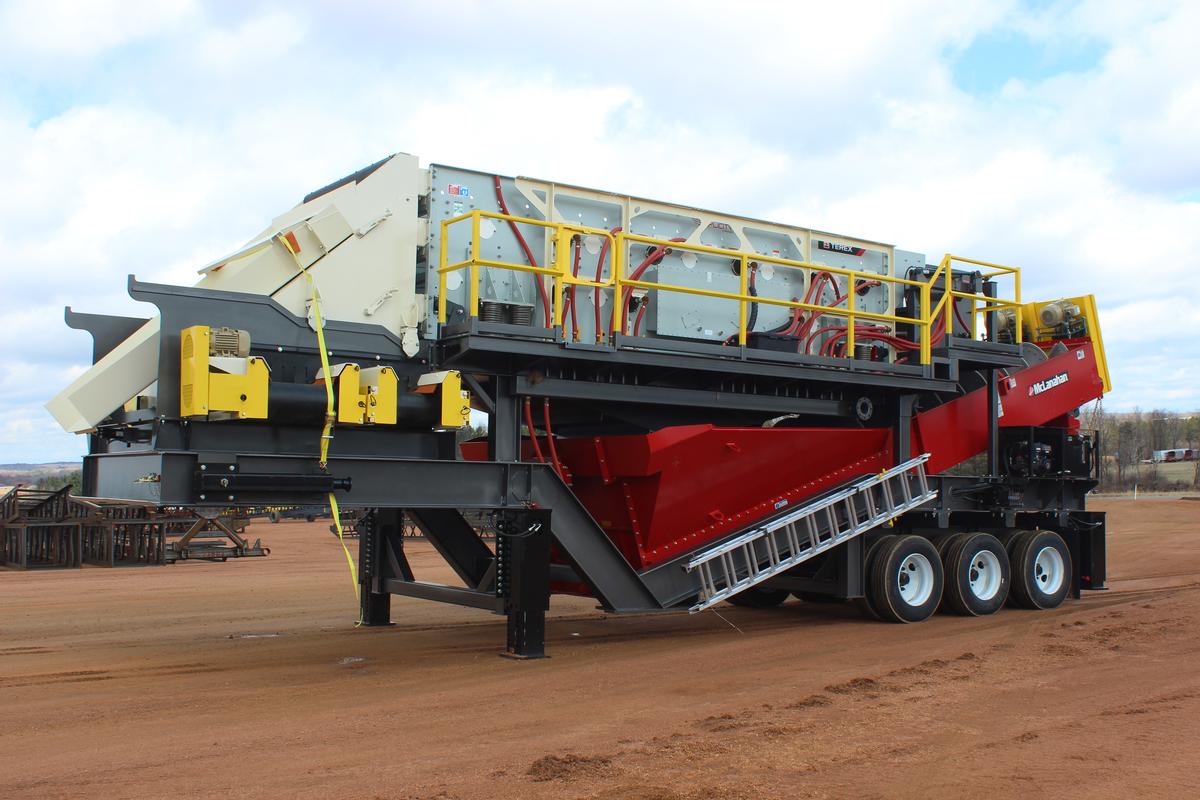

Wash Plant

Product Details

Categories:Portable Screen Plants

Condition:New

Quantity in Stock:1 in stock

Description

Wash Plant

*Terex Cedar Rapids 6x20 Horizontal Screen

Model: TSV6203-32

*Motor: 40 HP Electrical Motor

36x27 Fine Material Double Screw Washer

Model: FMDSW3627075

*Dual 15 H Motors

*Triple Axle Chassis – Constructed of HD Wide Flange Beam

*Heavy Duty 20,000 LB Leaf Spring Suspension – 8 Radial Tires

* Brake Package – Air Brakes, Emergency Valve and Plumbing

*DOT Tape

*Light Package – Brake and Directional Signals

*Hydraulic Power Roll Away Screen Overs Chute -1/4” Const. w/ ¼” AR Steel

*Walkways – Diamond Plate flooring w/ handrail, knee rail and kickplate on three sides of screen

* Ladders - 1 access ladders w/ chain closures at access points

*7 Starter Electrical Panel w/ Reversing

*Cord Reel & Tray w/ 100’ SO Cord

*Blending Gates for Top & Middle Decks

* Self Closing Gates at Cat Walk

* 4 Hydraulic Leveling run-on jacks & Gas Powered Power Unit 11 HP

*Hydraulic Cylinder for Hydraulic Powered roll away chute

*Under Screen Flume with Rinse Bars – Const. ¼” Mild Steel

*Hydraulic Raise and Lower Slurry Box, 3/8” AR 3 Spray Nozzles, Gate Valve to Balance Screws

*Static Spray System 8x8 Manifold with 8 90 Degree Elbows with Mini Spray Manifold for Slurry Box w/ Covers 100 PSI Gauge Gate Valve Between

30 x 11 Cross Conveyor

DRIVE SPECIFICATIONS:

· Gear Reducer: Dodge TXT215

· Motor: 5 HP TEFC

· Pulleys: Precision Pulleys

· Bearings: Dodge

· Take Ups: Kafka Built

CONVEYOR COMPONENTS:

· Belting: 2 ply 220 Top Belting

· Belt Scraper: Optional

· Idlers: CEMA B steel, 4″ dia. Troughing & Return Idlers

OPTIONS:

· Hopper: Full Length

24 x 11 Cross Conveyor
