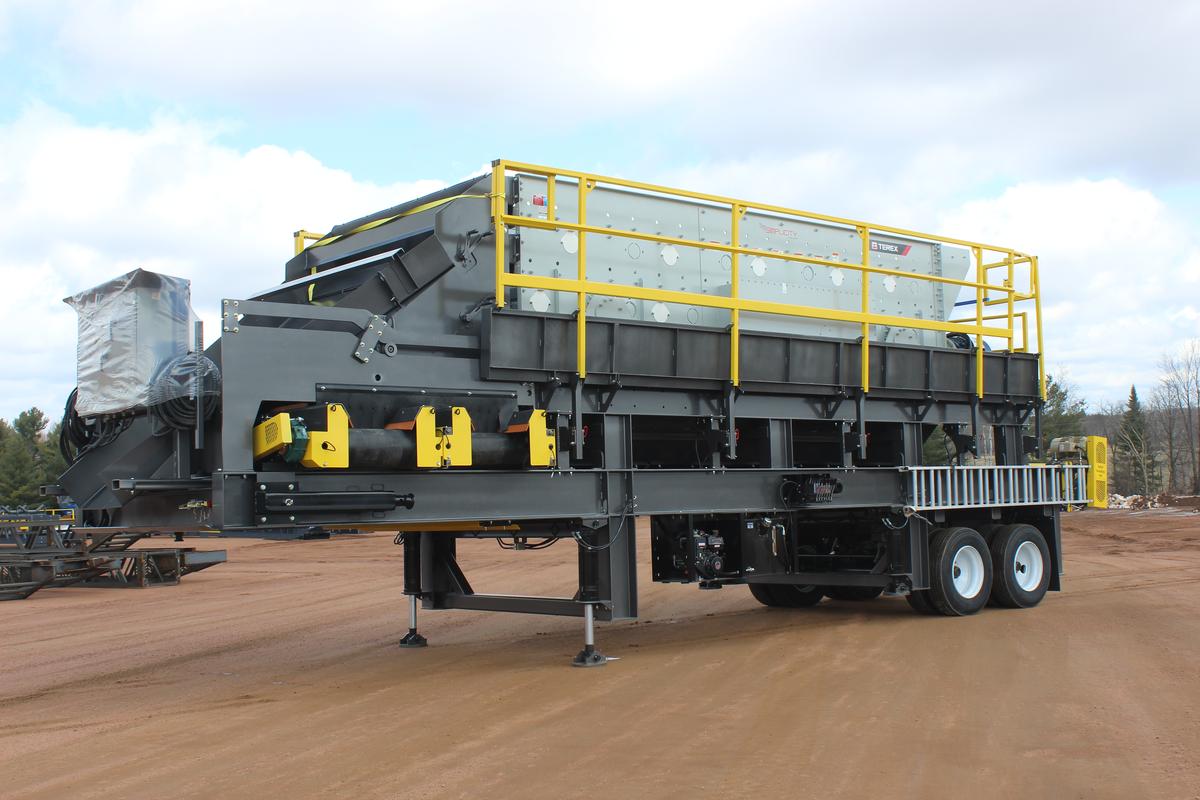

8 x 20 Screen Plant

*Terex Cedar Rapids 6x20 Horizontal Screen

*Motor: 50 HP Electrical Motor

*Tandem Axle Chassis – Constructed of HD Wide Flange Beam

*Heavy Duty 20,000 LB Leaf Spring Suspension – 8 Radial Tires

* Brake Package – Air Brakes, Emergency Valve and Plumbing

*DOT Tape

*Light Package – Brake and Directional Signals

*Hydraulic Roll Away Screen Overs Chute -1/4” Const. w/ ¼” AR Steel

*Walkways – Diamond Plate flooring w/ handrail, knee rail and kickplate on three sides of screen

* Ladders - 2 access ladders w/ chain closures at access points w/ Hydraulic Folding Side Catwalks

* Landing Jacks – 2 crank jacks at kingpin end

*7 Starter Electrical Panel w/ Reversing

*Cord Reel & Tray w/ 100’ SO Cord

*Blending Gates for Top & Middle Decks

* Self Closing Gates at Cat Walk

* 4 Hydraulic Leveling jacks & Gas Powered Power Unit 11 HP

*Hydraulic Cylinder for Hydraulic Powered roll away chute

*Under Screen Hopper – Const. ¼” Mild Steel Adjustable Rubber Flashing

60 x 28 Fines Conveyor

DRIVE SPECIFICATIONS:

·         Gear Reducer: Dodge TXT415

·         Motor: 15 HP TEFC

·         Pulleys: Precision Pulleys

·         Bearings: Dodge

·         Take Ups: Telescopic Take Up

CONVEYOR COMPONENTS:

·         Belting: 2 ply 220 Top Belting

·         Belt Scraper: Optional

·         Idlers: CEMA C steel, 5″ dia. Troughing & Return Idlers

OPTIONS:

·         Hopper: Full Length

30 x 12 Cross Conveyor (2)

DRIVE SPECIFICATIONS:

·         Gear Reducer: Dodge TXT215

·         Motor: 5 HP TEFC

·         Pulleys: Precision Pulleys

·         Bearings: Dodge

·         Take Ups: Kafka Built

CONVEYOR COMPONENTS:

·         Belting: 2 ply 220 3/16 Top Belting

·         Belt Scraper: NA

·         Idlers: CEMA B steel, 4″ dia. Troughing & Return Idlers

OPTIONS:

·         Hopper: Full Length
