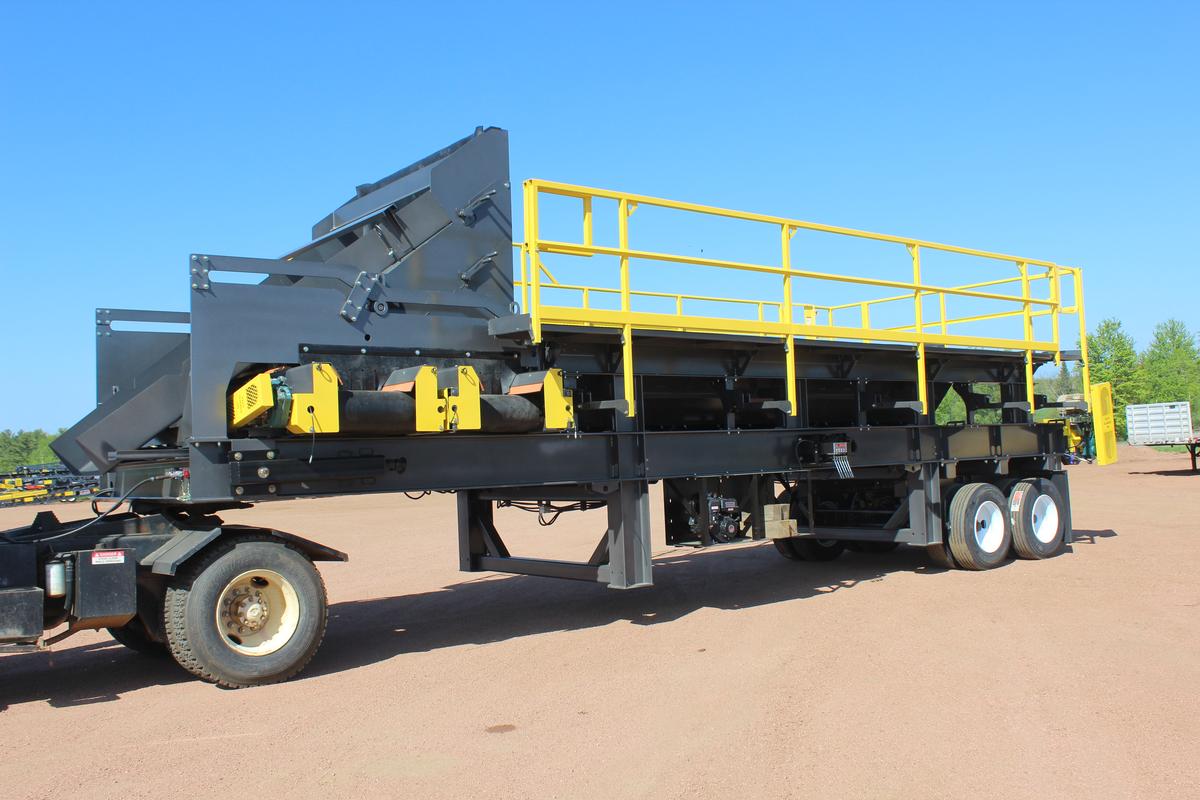

7x20 Screen Plant

Product Details

Categories:Portable Screen Plants

Condition:New

Quantity in Stock:1 in stock

Description

7 x 20 3 Deck Screen Chassis

*Motor: 50 HP Electrical Motor

*Tandem Axle Chassis – Constructed of HD Wide Flange Beam

*Heavy Duty 20,000 LB Leaf Spring Suspension – 8 Radial Tires

* Brake Package – Air Brakes, Emergency Valve and Plumbing

*DOT Tape

*Mudflaps

*Fifth Wheel Hitch

*Light Package – Brake and Directional Signals

*Structural Cribbing Legs – Qty. 4

*Hydraulic Power Roll Away Screen Overs Chute -1/4” Const. w/ ¼” AR Steel

*Hydraulic Cylinder for Hydraulic Powered Roll Away Chute

*Walkways – Diamond Plate flooring w/ handrail, knee rail and kickplate on two sides of screen

* Ladders - 2 access ladders

* Custom Walkway Around Screen with Conventional Height Walkway at Feed End

*Blending Gates for Top, Middle & Bottom Decks

* Self Closing Gates at Catwalk

*Cord Reel & Tray w/ 100’ SO Cord

* Hydraulic Jacks Only on Stock – Varies on Customer Purchase

*Under Screen Hopper – Const. ¼” Mild Steel Adjustable Rubber Flashing

*Folding Catwalk Cylinder

*7 Starter Electrical Panel w/ Reversing

30 x 12 Cross Conveyor

DRIVE SPECIFICATIONS:

·         Gear Reducer: Dodge TXT215

·         Motor: 5 HP TEFC

·         Pulleys: Precision Pulleys

·         Bearings: Dodge

·         Take Ups: Kafka Built

CONVEYOR COMPONENTS:

·         Belting: 2 ply 220 Top Belting

·         Belt Scraper: Optional

·         Idlers: CEMA B steel, 4″ dia. Troughing & Return Idlers

OPTIONS:

·         Hopper: Full Length

30 x 12 Cross Conveyor

DRIVE SPECIFICATIONS:

·         Gear Reducer: Dodge TXT215

·         Motor: 5 HP TEFC

·         Pulleys: Precision Pulleys

·         Bearings: Dodge

·         Take Ups: Kafka Built

CONVEYOR COMPONENTS:

·         Belting: 2 ply 220 3/16 Top Belting

·         Belt Scraper: NA

·         Idlers: CEMA B steel, 4″ dia. Troughing & Return Idlers

OPTIONS:

·         Hopper: Full Length

60 x 28 Under Screen Conveyor

DRIVE SPECIFICATIONS:

·         Gear Reducer: Dodge TXT415

·         Motor: 15 HP TEFC

·         Pulleys: Precision Pulleys

·         Bearings: Dodge

·         Take Ups: Telescopic Take Ups

CONVEYOR COMPONENTS:

·         Belting: 2 ply 220 3/16 Top Belting

·         Belt Scraper: Optional

·         Idlers: CEMA C steel, 5″ dia. Troughing & Return Idlers

OPTIONS:

·         Hopper: Full Length
